Configuration
5 blades, horizontal axis, upwind

Rated power
10kW @ 11.2 m/s (26mph) AC or DC Voltage & Hz per customer requirement

Low Wind Speed Performance
1.65 kW @ 4.5 m/s (10mph) steady wind; variable speed rotor captures exponential power

Applications
Stand Alone (off-grid) or Grid Feed (utility scale (Net Metering) or mini-grid)

Rotor speed
Up to 159 RPM (variable), maintains optimum Tip-Speed-Ratio

Blade design
Optimized for size and low wind speed performance

Yaw Control
Active Yaw Motor

Overall weight
3,175 kg (7,000 lbs) approx.

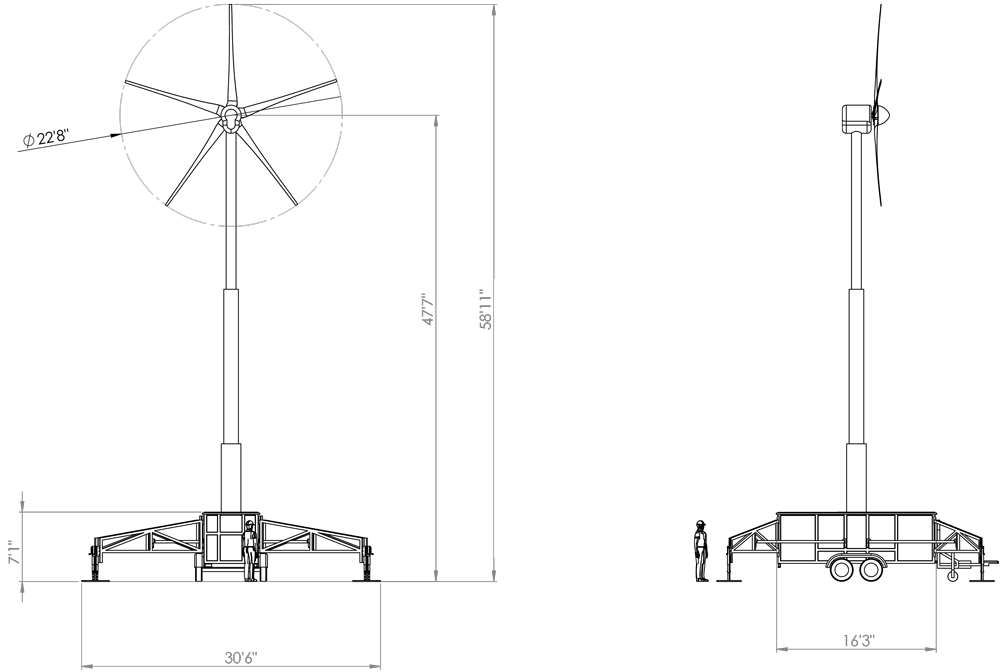

Rotor diameter
6.9 m (22.6 ft)

Swept area
37.4 m^2 (402 ft^2)

Blade length from center
3.43 m (11’ 3”)

Blade material
Carbon Fiber

Blade weight
4 kg (9 lbs) each

Total tip height
18.3 m (60 ft)

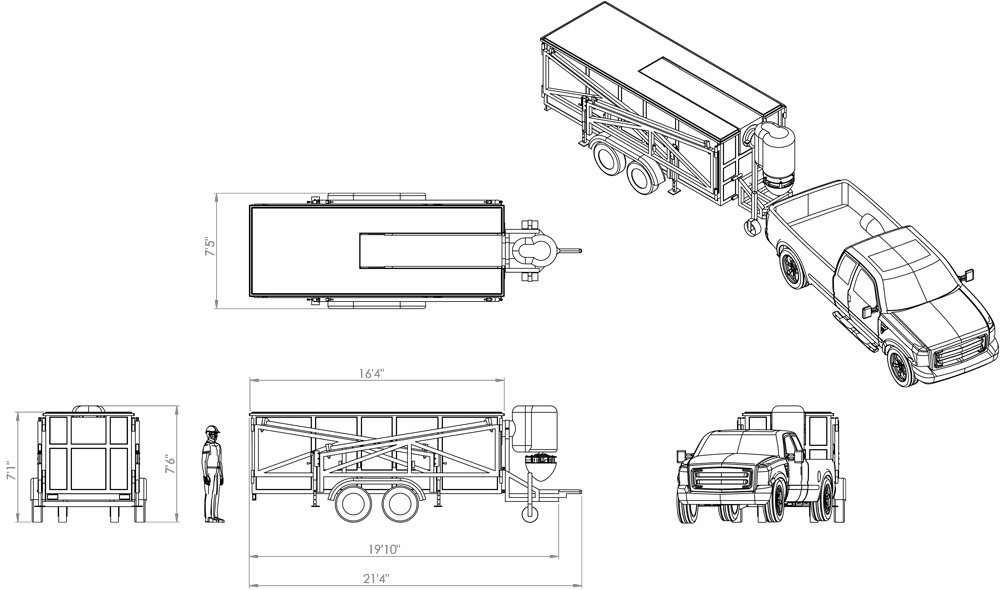

Trailer size
2.4 m (8 ft) x 6.1 m (20 ft)

Trailer features
Alloy Construction, Dual Axle, On or Off Highway, Command/ Control Station, Battery Storage, Component Shipping Lockers

Leveling / Stabilization
4 Outriggers, 2.28 m (7.5 ft) each

Power regulation
Proprietary “Dancing With the Wind” programming / energy storage

Alternator
Permanent magnet, AC variable frequency, low cogging design

Safety
Vibration, Load, Tilt & Weather monitoring, Disc Brake

Service
All service at ground level. Monthly service/inspection suggested (2-4hrs/service).

Monitoring
On-board data collection, Optional Telemetry

Control System
Programmable Logic Controller (PLC) with proprietary programming

Instrument Panel
Full wind and power output instrumentation, Graphical User Interface (GUI), systems controls

User Interface
Optional Wireless or connected network software interface for remote monitoring and control

Warranty
Turbine & controls 5 years parts and labor

Shipping
Up to 2 units fit in a single ISO Shipping Container

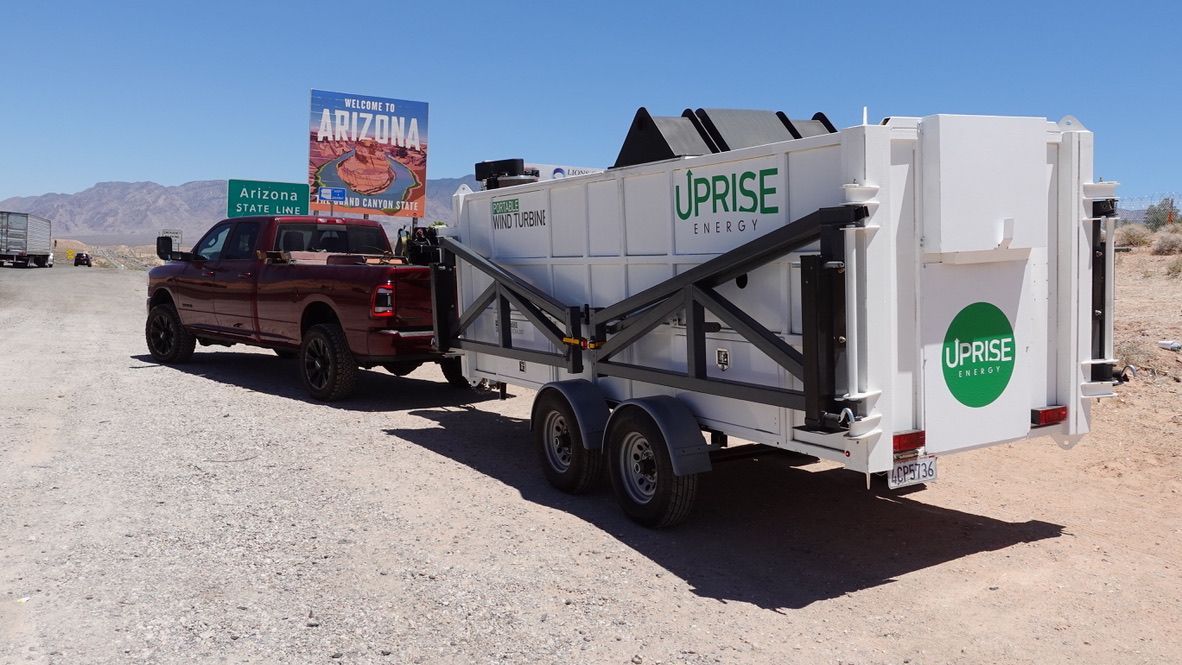

Portability
On or off-highway, towable by standard truck or tractor

Mobilize / Demobilize
On-board batteries, 12V DC Winch and tool-kit.
